Hesko barriers is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against small-arms fire, explosives and flood control.

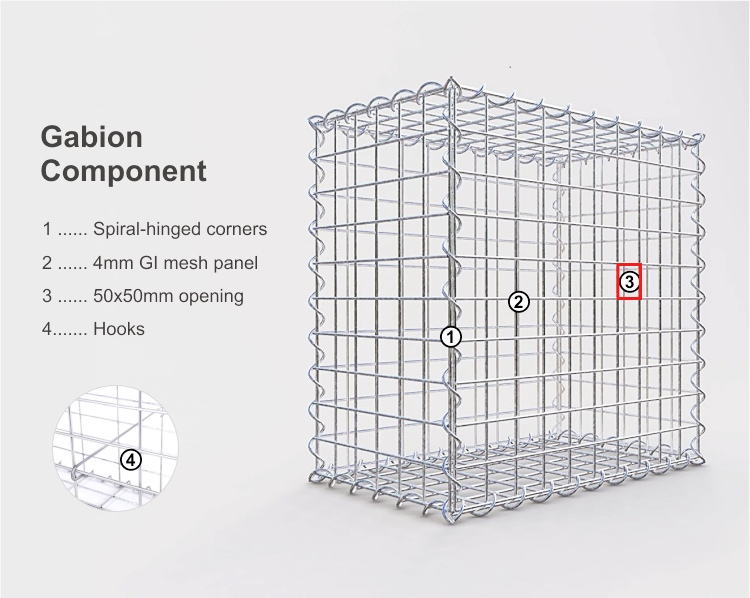

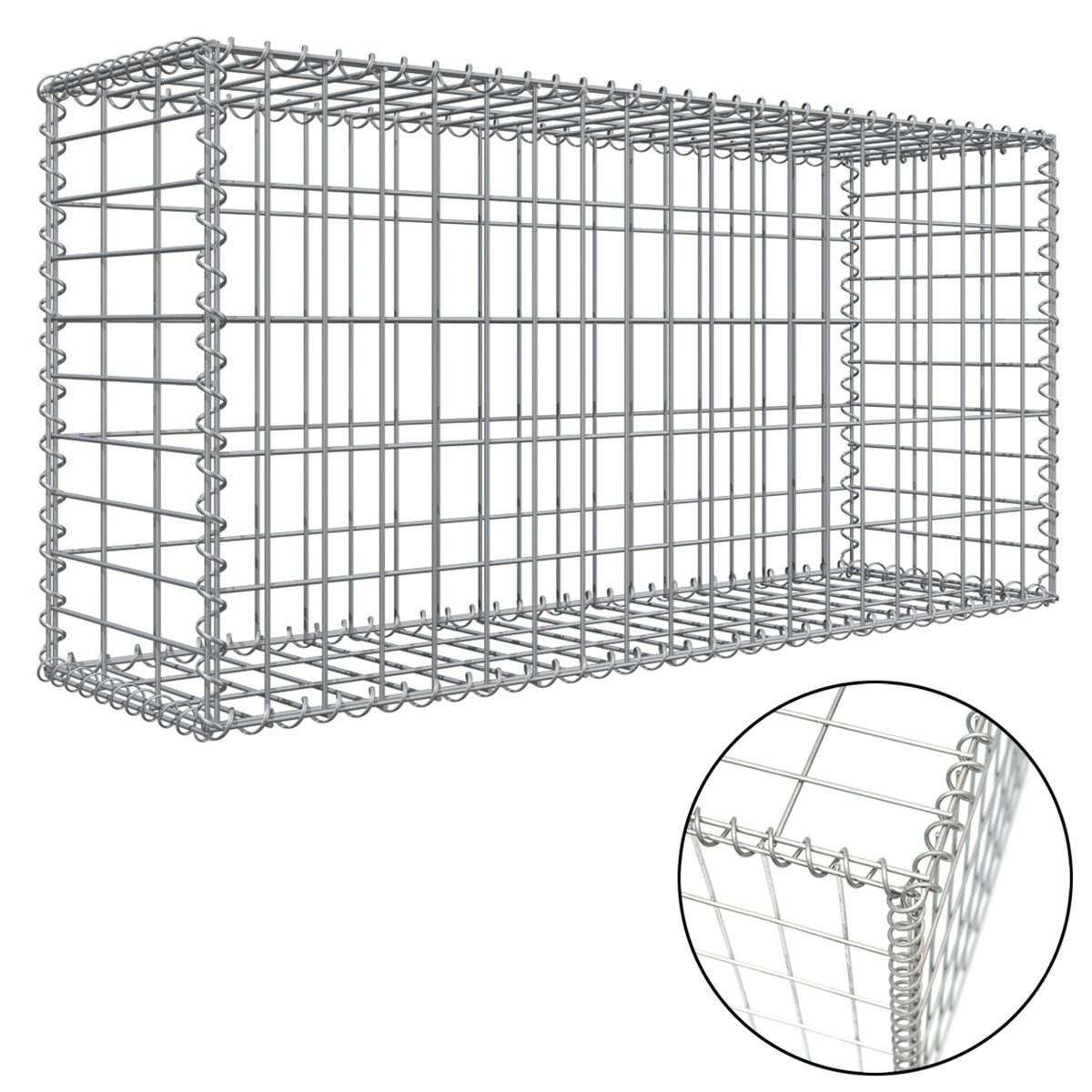

Hesko barriers are made of collapsible wire mesh containers with a heavy-duty fabric lining. The wire mesh containers are made of high carbon steel wire welded together using a special welding process to enhance finish and strength. The surface treatment of the wire mesh containers is use hot-dip galvanized or zinc-aluminum alloy to improve corrosion resistance. The heavy-duty non-woven geotextile lining used in the barriers is flame retardant and UV resistant, enhancing safety and durability during transportation, installation, and use.
The Recoverable MIL units are deployed in exactly the same way as the standard MIL products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.
Standard Sizes ( including Recoverable or Standard model)
|
||||
MODEL
|
HEIGHT
|
WIDTH
|
LENGTH
|
NUMBER OF CELLS
|
MIL1
|
54″ (1.37m)
|
42″ (1.06m)
|
32’9″ (10m)
|
5+4=9 CELLS
|
MIL2
|
24″ (0.61m)
|
24″ (0.61m)
|
4′ (1.22m)
|
2 CELLS
|
MIL3
|
39″ (1.00m)
|
39″ (1.00m)
|
32’9″ (10m)
|
5+5=10 CELLS
|
MIL4
|
39″ (1.00m)
|
60″ (1.52m)
|
32’9″ (10m)
|
5+5=10 CELLS
|
MIL5
|
24″ (0.61M)
|
24″ (0.61M)
|
10′ (3.05m)
|
5 CELLS
|
MIL6
|
66″ (1.68m)
|
24″ (0.61m)
|
10′ (3.05m)
|
5 CELLS
|
MIL7
|
87″ (2.21m)
|
84″ (2.13m)
|
91′ (27.74m)
|
5+4+4=13 CELLS
|
MIL8
|
54″ (1.37m)
|
48″ (1.22m)
|
32’9″ (10m)
|
5+4=9 CELLS
|
MIL9
|
39″(1.00m)
|
30″ (0.76m)
|
30′ (9.14m)
|
6+6=12 CELLS
|
MIL10
|
87″ (2.21m)
|
60″ (1.52m)
|
100′ (30.50m)
|
5+5+5+5=20 CELLS
|
MIL11
|
48″ (1.22m)
|
12″ (0.30m)
|
4′ (1.22m)
|
2 CELLS
|
MIL12
|
84″ (2.13m)
|
42″ (1.06m)
|
108′ (33m)
|
5+5+5+5+5+5=30 CELLS
|
MIL19
|
108″ (2.74m)
|
42″ (1.06m)
|
10’5″ (3.18m)
|
6 CELLS
|
